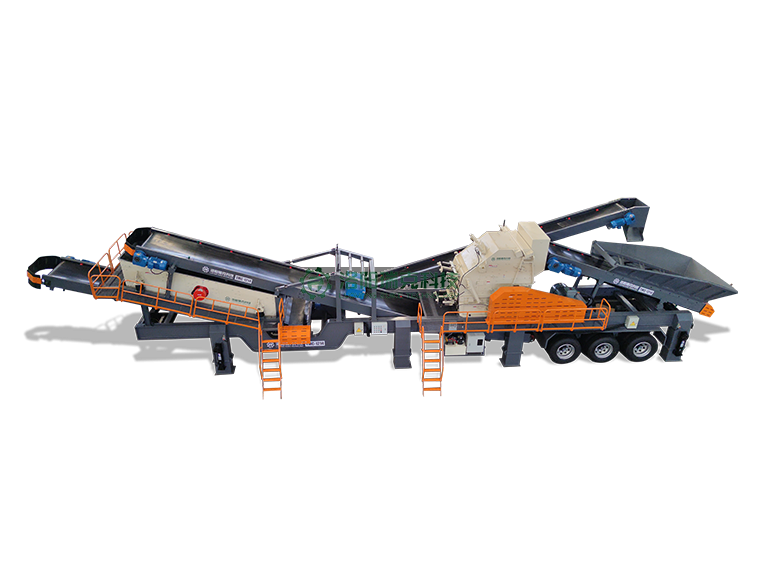

YD series tire moving station
YD series tyre type mobile crushing screen station is a mobile crushing screen which is composed of the overall design and combination of the raw material bin, bar feeder, coarse crushing equipment, multi-layer vibrating screen, medium crushing equipment, fine crushing equipment, mobile belt conveyor, sand washing machine and electrical control system equal to the standard tyre type tractable trailer
Phone：152 2543 9821
Enterprise email：luoyangruike@163.com
YD series tire moving station
Application field：no
For the material：no
Product advantage
Standard wheel axle and traction steering axle are adopted to facilitate road transportation and transfer
Complete set, quick installation, electricity can run production
Each crushing unit has light weight, short length, strong adaptability, strong mobility, easy to move and flexible combination
Equipped with high performance, high efficiency, multi-functional special vehicle equipment, large output, high efficiency, reliable performance
Flexible configuration and combination, according to different engineering needs, can be configured into a coarse crushing unit, crushing unit, fine crushing unit combination of three-stage crushing screen system, can also be independent unit operation
Simple operation and control, can be single-segment integrated operation control, can also be multi - segment linkage control
Technical parameters
| 基本配置 规格型号 | YD-120 | YD-150 | YD-200 | ||
| 生产粒度(mm) | 0~30 | 0~30 | 0~30 | ||
| 生产能力(t/h) | 80~120 | 120~150 | 150~200 | ||
| 粗碎段 | 给料机 | ZSW380x95 | ZSW420x110 | ZSW490x110 | |
| 粗碎设备 | RC80 | RC96 | RC106 | ||
| 中碎段 | 振动筛 | 3YA1860 | 3YA2160 | 3YA2460 | |
| 中碎设备 | 中硬 | RNP110 | RNP1213 | RNP1315 | |
| 特硬 | RGP100 | RGP11 | RGP300 | ||
| 辅助设备 | 移动式皮带机、液压支腿、除铁器、电器控制系统等 | ||||
